H524A

• Product Features

  UMTS, LTE Band
  PCB Soldering Re-flow
  Wide Operation Temperature Range -40 ~ 85℃
  Compact Package Design for PCB Applications

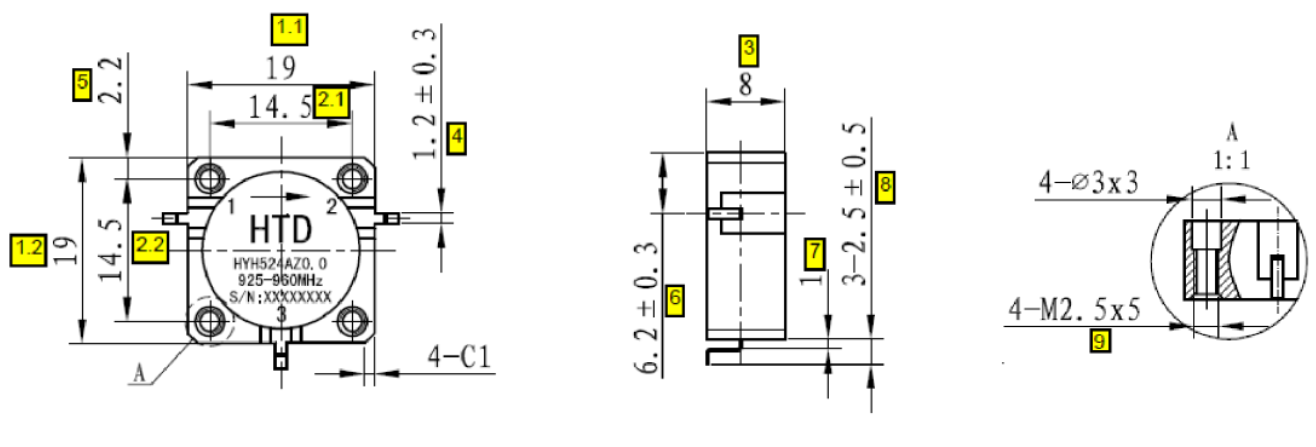

• Size Display



• Specification Parameters

  Model		Frequency（GHz） F1	Frequency（GHz） F2	Center Frequency (GHz)	Bandwidth （GHz）	Isolation （dB）MIN	INS LOSS （dB）MAXen	VSWR MAX	Power (W)	IMD (@2X43dBm) (-dBc)MAX
  H524A [1900-3000MHz											1.900	3.000	2.450	1.100	20	0.35	1.2	100	-60
  H524A [1805-2170MHz		1.805	2.170	1.8875	0.165	22	0.3	1.17	150	-65
  H524A [930-960MHz		0.930	0.960	0.9450	0.030	22	0.3	1.17	100	-
  H524A [902-928MHz		0.902	0.928	0.9150	0.026	22	0.3	1.17	100	-
  H524A [840-845]MHz		0.840	0.845	0.8425	0.005	20	0.35	1.2	100	-
