HYG842A
-
Product Features
UMTS, LTE Band
Wide Operation Temperature Range -5 ~ +55℃ -

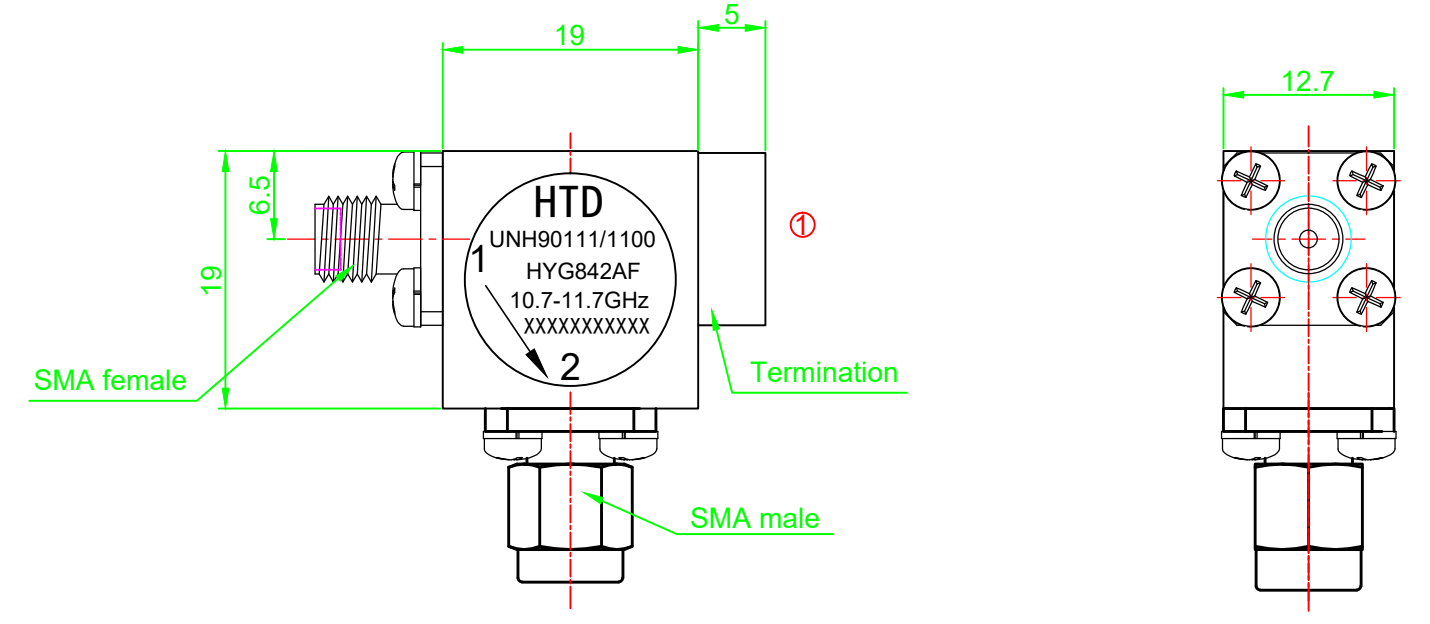

Size Display
-
Specification Parameters
Model
Frequency（GHz）
F1Frequency（GHz）
F2Center Frequency
(GHz)Bandwidth
（GHz）Isolation
（dB）MININS LOSS
（dB）MAXenVSWR
MAXPower
(W)IMD
(@2X43dBm)
(-dBc)MAXHYG842AF[12.7-13.3GHz] 4.400 5.000 4.7000 0.600 23 0.30 1.15 10 - HYG842AF[10.7-11.7GHz] 3.400 3.800 3.6000 0.400 23 0.30 1.15 10 - HYG842AF[7.7-8.5GHz] 3.400 3.600 3.5000 0.200 23 0.30 1.15 10 - HYG842AF[7.1-7.9GHz] 2.486 2.700 2.5930 0.214 23 0.30 1.15 10 - HYG842AF[6.4-7.2GHz] 2.545 2.665 2.6050 0.120 23 0.30 1.15 10 - HYG842AF[5.6-6.5GHz] 2.545 2.665 2.6050 0.120 23 0.30 1.15 10 - HYG842AF[4.4-5.0GHz] 2.300 2.400 2.3500 0.100 23 0.30 1.15 10 - HYG842AF[3.6-4.2GHz] 3.600 4.200 3.9000 0.600 23 0.30 1.15 10 -
